Hybrid on/off grid inverter,support PV,AC,Battery connection;

DSP digital control technology,input PFC technology,input PF up tp 0.99"High efficiency output inverter topology technology high efficiency conversion, low energy consumption.Output PF is 1”;

User-defined output method priority,charging method priority,battery charging and discharging.User-defined voltage and current;

Configurable AC/PV output usage timer and prioritization;

User-defined input range,output transfter time;

High PV voltage input range 60-45Ovdc;

Built-in 120A MPPT charger,AC charger 100A;

Cold start function;

Over-temperature,overload,short circuit protection;

Battery equalization function to optimize battery performance and extend life cycle;

Isolated battery design;

Pure sine wave;

Dual output.AC output power;

Customized status LED ring with RGB lights;

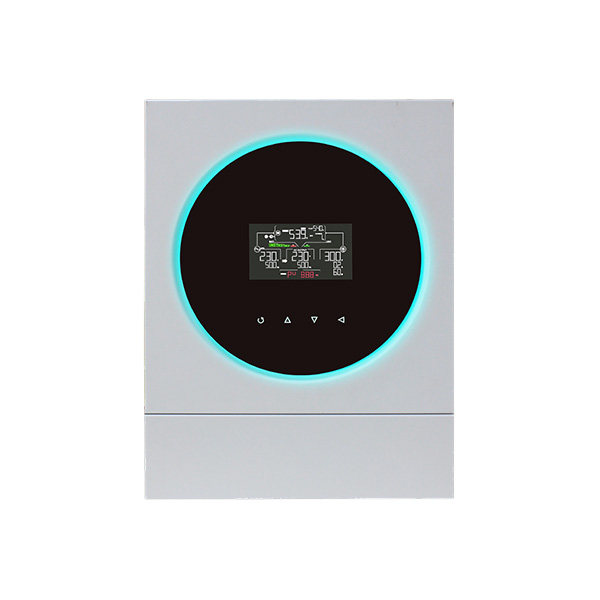

Touchable button with 5"colored LCD,checking all status,parameters by it；

Support reviewing the record daily generation power and output load;

Compatible to AC/generator,Generator self-starting;

Support BMS(RS485)/Rs232/USB/Dry contact interface;

Built-in Wi-Fi for mobile monitoring (Android/IOS APP is required) PC monitoring available;

Built-in anti-dust kit;

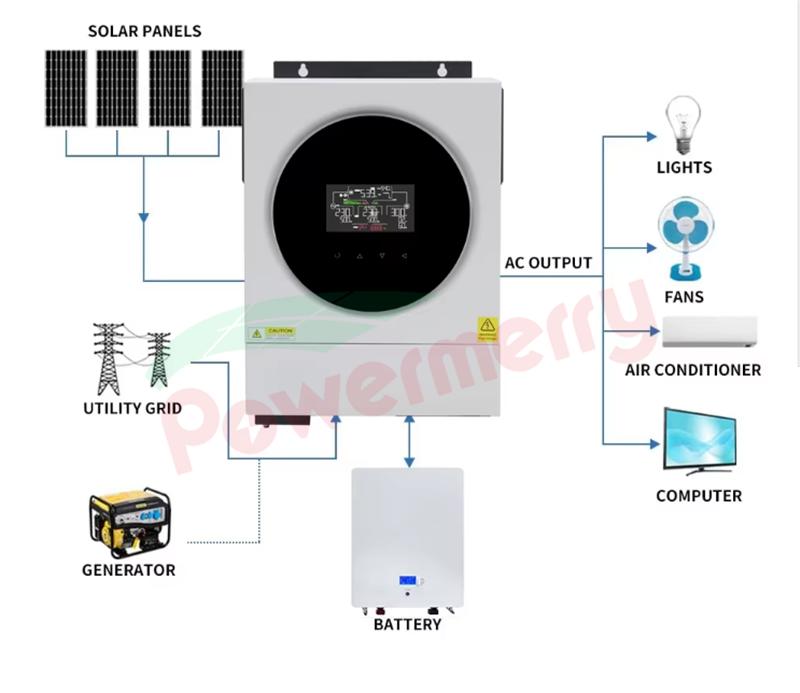

Solar System Connection

WlFl ModulesPGRS ModulesPV Power Station MonitoringlnverterGenerator PowerUtility PowerSolar SystemBattery PowerHome Power System

Application

Self-built house

Yacht

Villa

Wilderness Signal Tower

RV
