Product Features
All-in-One Integrated Design
Support PV , AC , Battery Connection
Works with or without Battery , Supports lead-acid battery or lithium battery.
PF0.99 High Efficiency Output
MPPT Charger Built -in
Parallel Operation
Parallel operation up to 6 units;
Pure sine wave ;
Communication
Support : RS232 ,BMS(Paineng), WiFi communication , USB / dry contact ;
Smart Protection & User-Friendly Control
Full protections against over/under voltage, overload, short circuit, overheating; LCD/LED display and remote monitoring available.
Wide Application & Parallel Support
Suitable for residential, industrial, and rural areas; many models support parallel expansion for higher power capacity.
0755-27198839

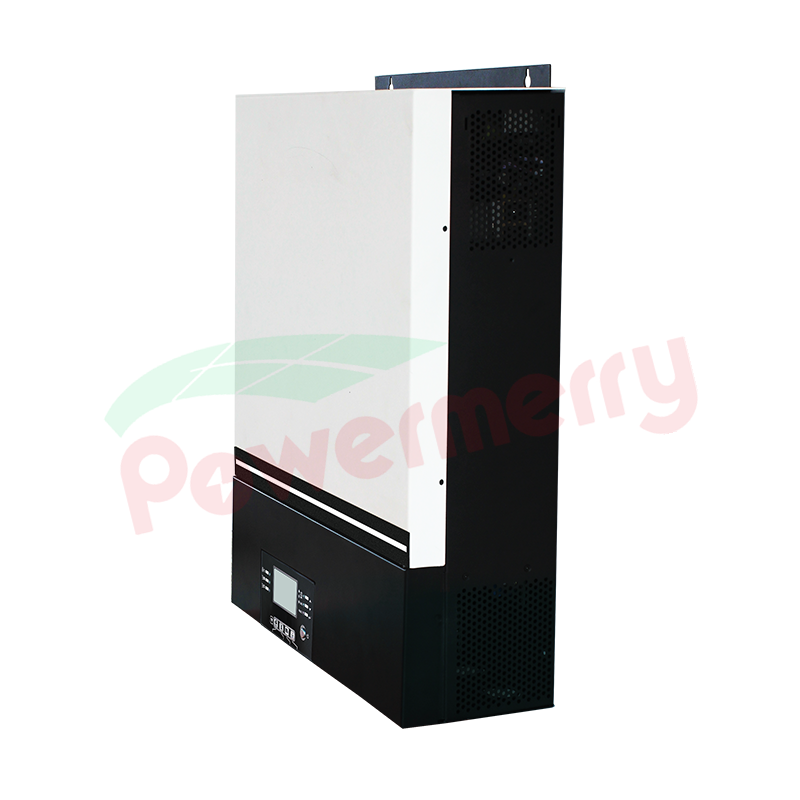

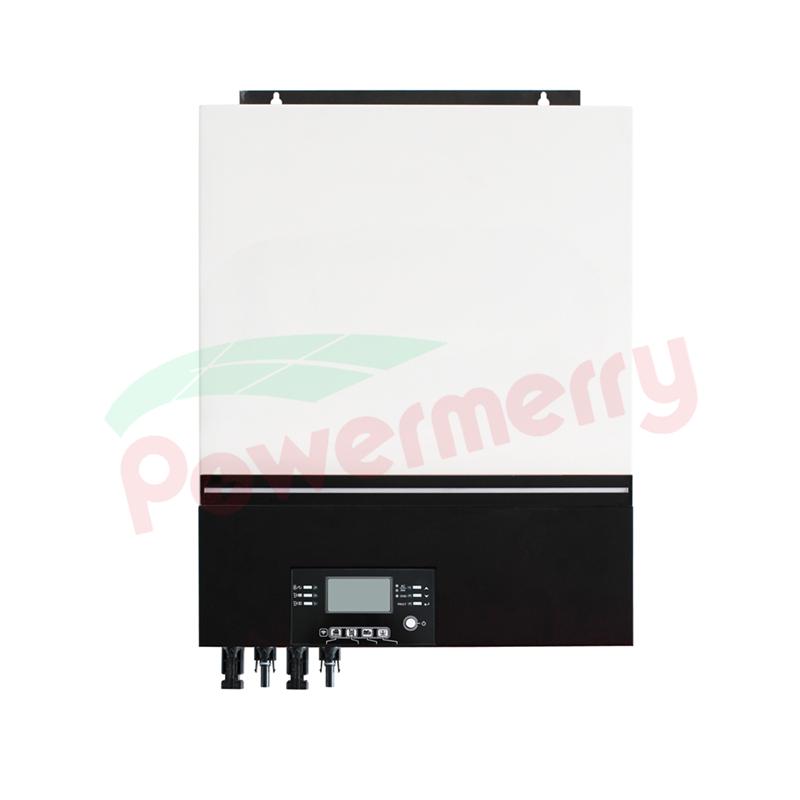

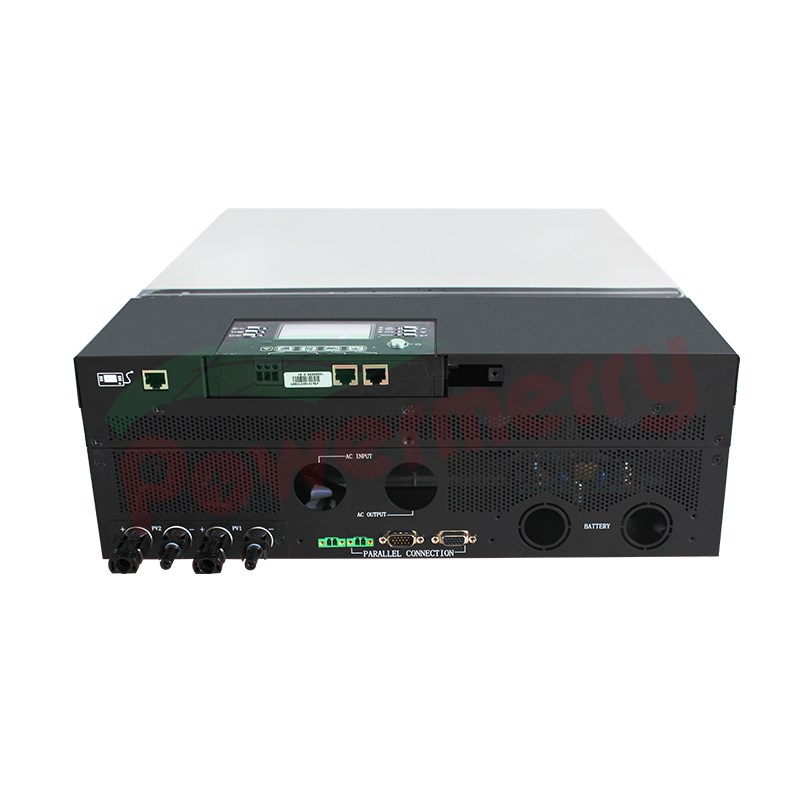

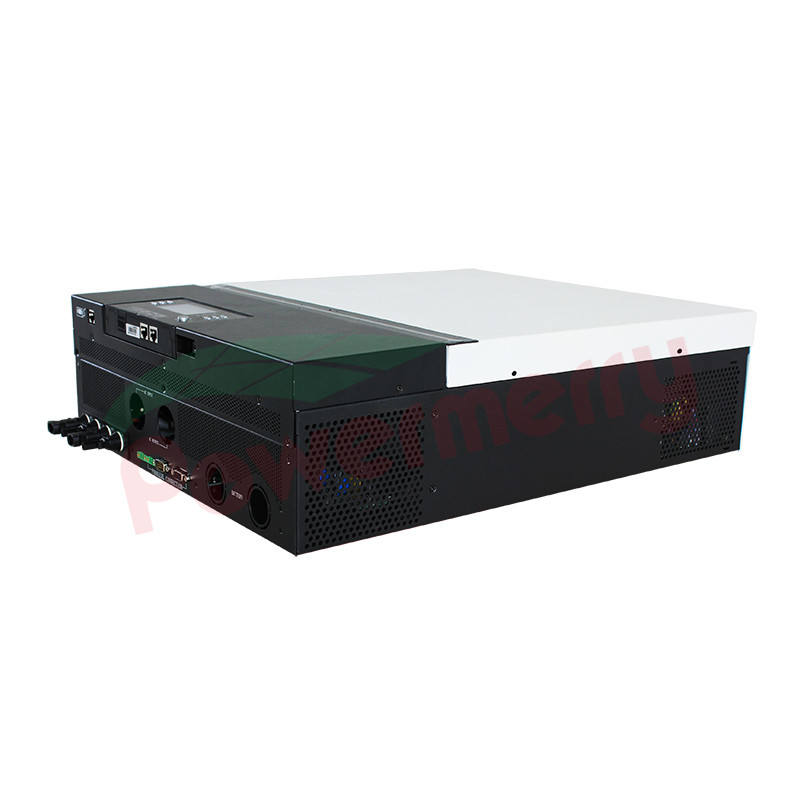

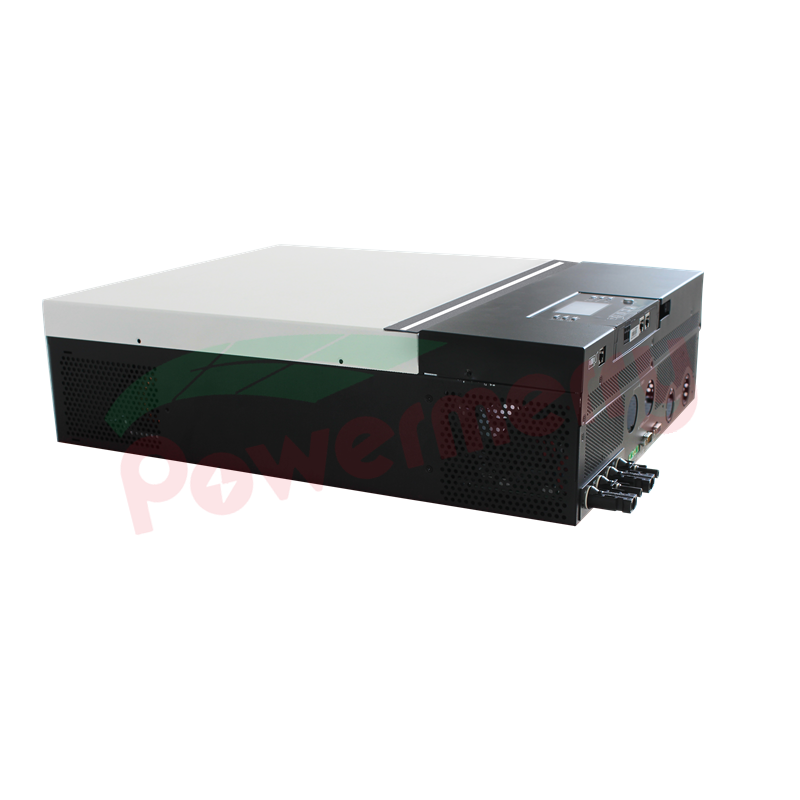

Off-grid inverter, support photovoltaic, mains, battery hybrid input;
DSP digital control, input PFC technology with power factor up to O.99, high-efficiency inverter topology technology for high efficiency output and low self-energy consumption, output power factor is 1;
Configurable output source prioritization /charging source prioritization /battery charge current and discharge voltage value via LCD setting;
Configurable output usage timer and charger source prioritization timer;
Configurable input voltage range for home appliance and personal computer via LCD setting;
High PV input voltage range 80-450Vdc;
2 strings PV input max power8ooow (2 tracker each 4000w) /11000w(2 tracker each 5500w);
Built-in 120A/150A MPPT Solar charger and 120A AC charger;
Parallel operation up to 6 units;
Over temperature/overload/short circuit protection;
Battery equalization function to optimize battery performance and extend life cycle;
Customized colors and states of RGB light;
Support reviewing daily record of PV generation and load;
Compatible to Utility mains or generator input;
BMS (RS485)/RS232/Dry Contact port available;
Built-in WIFI for mobile monitoring (Android/IOS APP is available) and PC monitoring via built-in anti-dust kit;

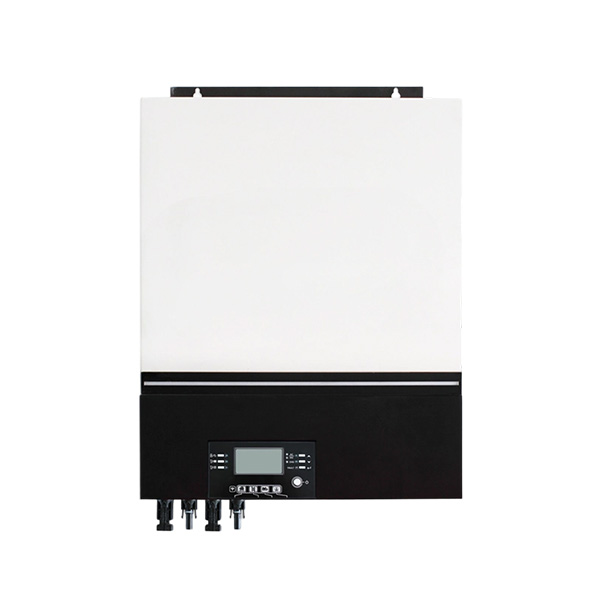

| Model | SC－MAX 8KW | SC－MAX 11KW |
| Rated Power | 8000VA/8000W | 11000VA/11000W |
| Parallel operation | up to 6 units | |
| AC Input | ||
| Voltage | 230Vac | |
| Voltage range | 170-280Vac(For personal computers) /90-280Vac(Suitable for household appliances) | |
| Frequency range | 50 Hz/60 Hz | |
| Output Power | ||
| AC voltage range (battery supply power) | 220Vac/230Vac/240Vac ±5%(Default230Vac) | |
| Frequency | 50 Hz/60 Hz(Default50Hz) | |
| Surge Power | 2*rate power lasts 5 seconds | |
| Efficiency (peak) | 93% | |
| Transfer time | 10ms(AS UPS), 2Oms (household appliance) | |
| Over load protection | 5s@≥150%loads;10s@110%~150%loads | 5s@≥120%loads;10s@105%~120%loads |
| Output wave form | Pure sine wave | |
| Battery | ||
| Battery voltage | 48Vdc | |
| Floating charging voltage | 54Vdc | |
| Over charging protection | 66Vdc | |
| PV power Charging and Utility Power charging | ||
| PV input | MPPT | |
| Maximum PV array open circuit voltage | 500Vdc | |
| Maximum PV array power | 8000W | 11000W |
| MPPT range@operating voltage | 80-450Vdc | |
| MPPT rate voltage range | 240Vdc~450Vdc | 360Vdc~450Vdc |
| Max solar charge current | 120A | 150A |
| MAX AC charge current | 120A | 150A |
| Max charge current | 120A | 150A |
| Inverter | ||
| Size (D/W/H) | 600mx425mmx150mm | |
| Net Weight(Kg) | 19 | |
| Communication port | USB/RS232/BMS/WiFi/Dry Contact | |
| Environment | ||
| Operating temperature | -10°℃~50°℃ | |
| Storage temperature | －15°℃C~60°℃ | |
| Relative humidity | 5%~95%(No condensation) | |
| Standard | ||
| Executive standard | CE | |
