Quickly respond to customer needs
Product Features
High efficiency online double conversion technical
High scalability
Complete output power factor
Modular design reduces average repair time
N + 1 or N + X parallel ensure power supply
Easy to install and maintain
Flexible battery configurations is suitable for different applications
The charge current can be adjusted
High overload capability
Easy to management with industrial grade LCD display
0755-27198839
High efficiency online double conversion technical
RM series use online double conversion technical, when the load reach 50%,efficiency >96%,when the load reach 25%,efficiency reach 95%,energy saving effect is good,it also can cut down the Total cost of ownership (TCO)
High scalability
DSP control provides a advanced high performance solve solution,Modular design and parallel technology, RM series can be easy to expanse Power in the future.
Complete output power factor
RM Series provides 1oo% output power (KVA=kilowatts),key load provides the maximum power capacity. It can satisfy the requirements of the latest server.

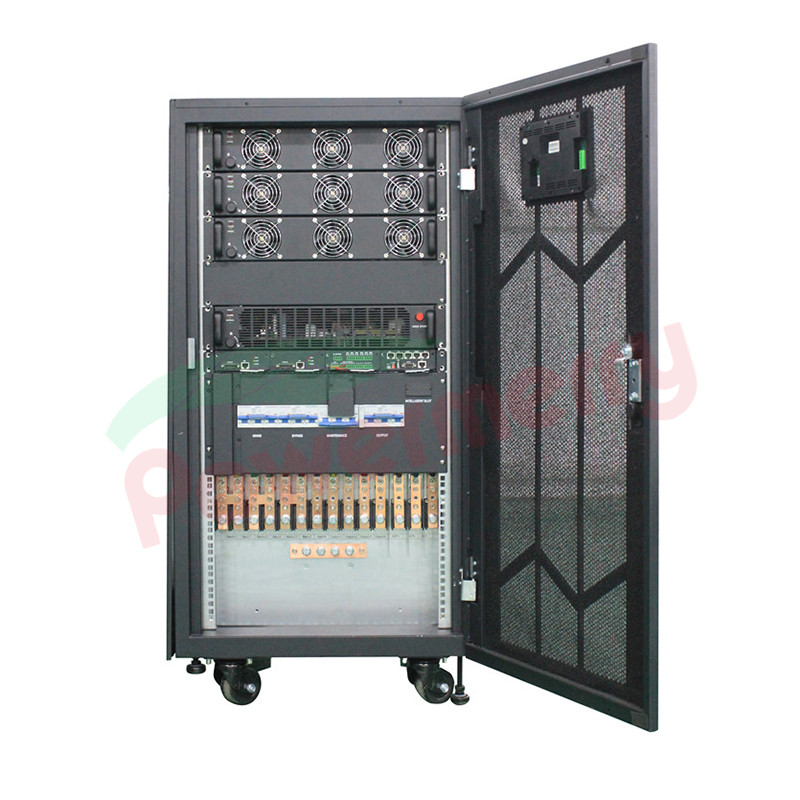

Modular design reduces average repair time
By using STS module, power modules and battery modules,it will make it simple to maintenance and updates and reduce the average repair time.
N + 1 or N + X parallel ensure power supply
expand architecture can let you cut down cost, N + 1 or N + X technology can expand power requirement from 30kva to 300kva in a single rack.
Easy to install and maintain
The built-in maintenance bypass ensures that UPS can supply power for the load during maintenance all control panels and connectors are positive operation,in order to make it easy to install and maintain.
Flexible battery configurations is suitable for different applications
The number of batteries can be adjusted,It can adapt to different power requirements and shorten system down time The battery voltage can set from 32 to 40 per set.
The charge current can be adjusted
RM Series UPS can reach the Max charge current of 8A per power modular and can adjust base on the different requirements.
High overload capability
RM series >110% normal run 60minutes, >120% 10minutes,>150% 1 minutes.
Easy to management with industrial grade LCD display
The Designed of RM series UPS is easy to management by using the industrial grade Lcd display.The intuitive design improves the recognition of display information.
| Model | 33-10K | 33－20K | 33-30K | 33－40K | 33－60K | 33-80K | 33-100K | 33-120K | 33－160K | 33-200K | 33－300K | 33－400K |
| Capacity (KW) | 8KW | 16KW | 24KW | 32KW | 48KW | 64KW | 80KW | 96KW | 128KW | 160KW | 240KW | 320KW |
| Work way | Online supply power,Static bypass switch,double conversion technology | |||||||||||
| Phase | 3 phase +N+G | |||||||||||
| Input voltage | 380VAC±25% | |||||||||||
| Input frequency | 50Hz±10%，60Hz±10% | |||||||||||
| Soft start | 0~100% 5sec | |||||||||||
| battery No. | 32 pcs (40pcs)/12V | |||||||||||
| battery voltage | 384VDC(480VDC) | |||||||||||
| Float voltage | 405VDC(540VDC) | |||||||||||
| Charger current | 1A~4 0A (base on your battery capacity) | |||||||||||
| Rated power | capacity×0.8 | |||||||||||
| Phase | 3 phase +N+G | |||||||||||
| Output voltage | 380VAC±1%(balance load),380VAC±5%(non-balance load) | |||||||||||
| Output frequency | 50Hz±0.05%,60Hz±0.05% (battery supply power) | |||||||||||
| Crest Factor | 3:01 | |||||||||||
| wave | Pure sine wave | |||||||||||
| THD | linear load< 2%;non-linear load <5% | |||||||||||
| Dynamic voltage | <±5% | |||||||||||
| Instant recovery time | <10ms | |||||||||||
| Balance load voltage | <±1%;<±5% (unbalance load voltage) | |||||||||||
| Over load | 125%1min,150%1S | |||||||||||
| Inverter efficiency | >91% | |||||||||||
| Transfer time | OMs | |||||||||||
| Communication | Rs232,485 | |||||||||||
| interface | 0~40℃ | |||||||||||
| work temperature | 30%~90% | |||||||||||
| Humidity | <1000 meters (the power will cut down 1% when the altitude add every 100 meters,the max altitude is 4ooo meters) | |||||||||||
| Altitude | 40~50 | 45~55 | 55~65 | 65~75 | 65~75 | 65~75 | ||||||
| Noise dB | 10－20K | 30－40K | 60-120K | 60－120K | 100-200K | 300-400K | ||||||
| Product size LxWxH(CM) | 60.5x40.5x91.5 | 82x43x116 | 97.5x55.5x129 | 180x110x168 | 2200x850 | |||||||
| Weight (KG) | 140 | 210 | 280 | 320 | 420 | 490 | 560 | 680 | 2100 | 2200 | 2500 | |
| Optional | Parallel module,filter,input Isolation transformer,Intelligent monitoring software、SNMP adapter | |||||||||||
