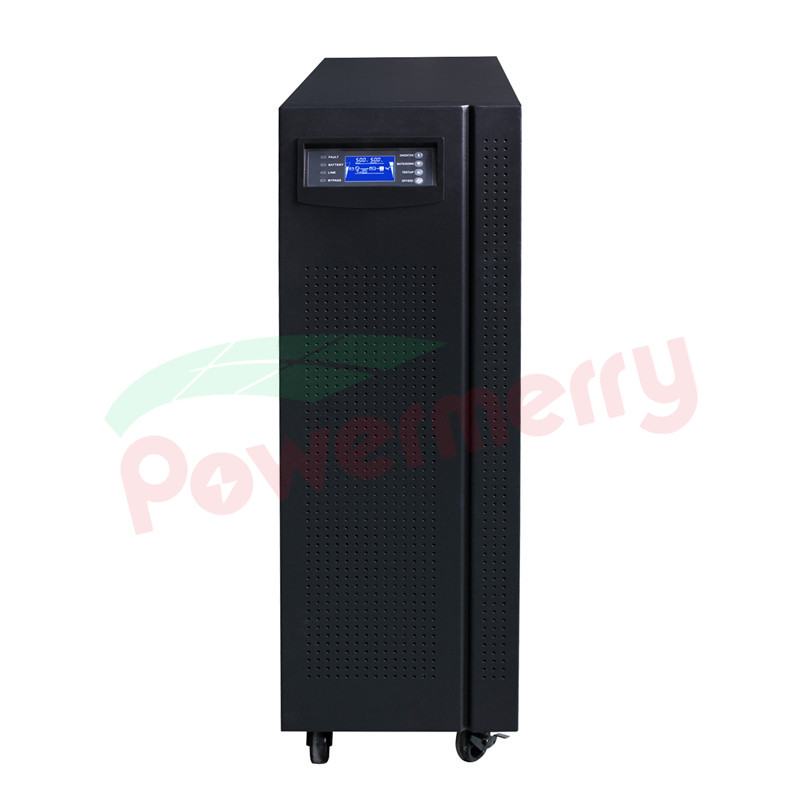

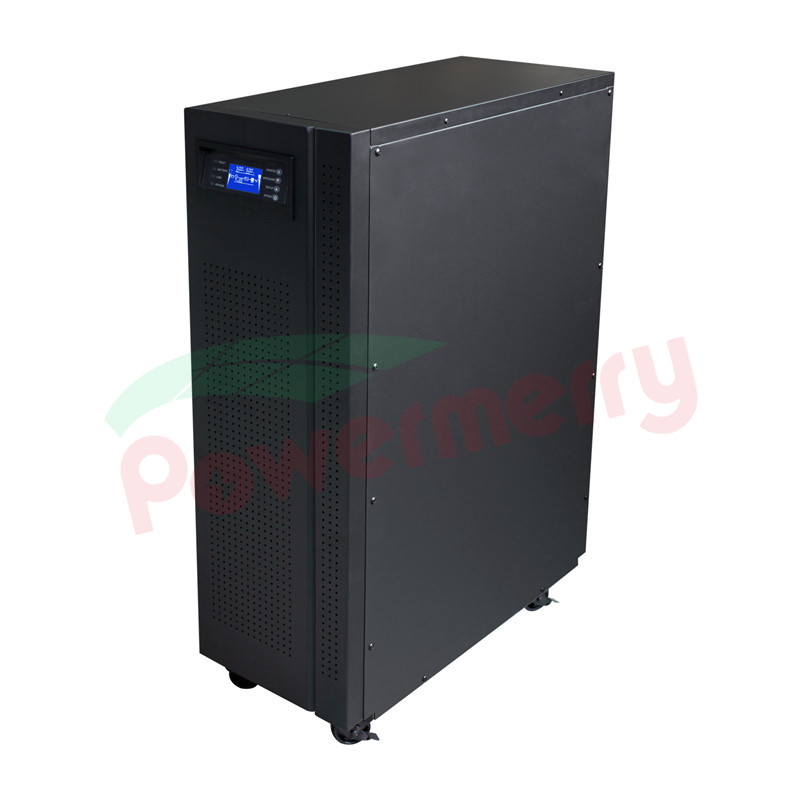

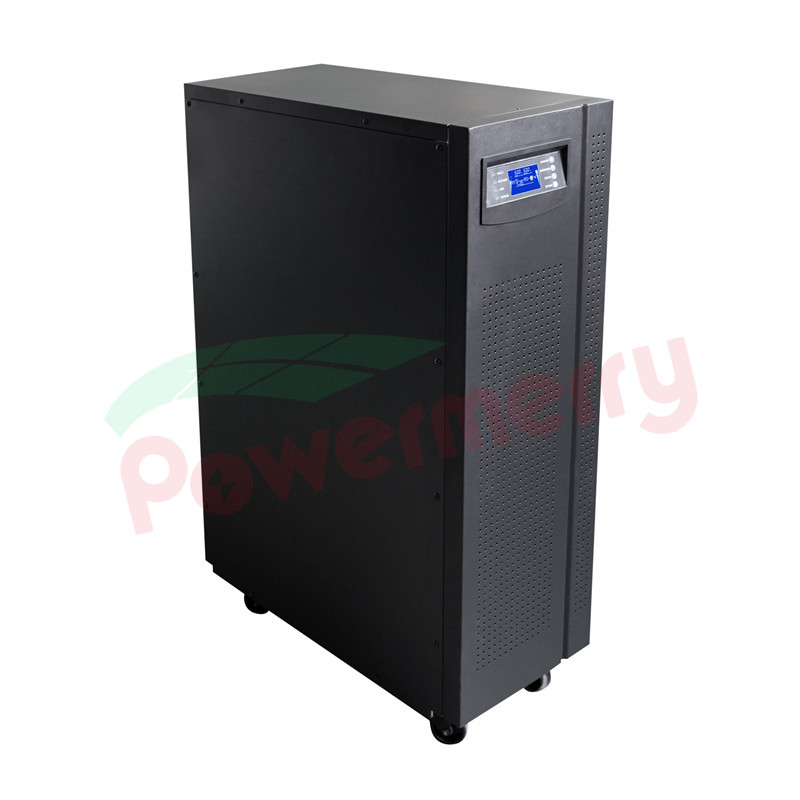

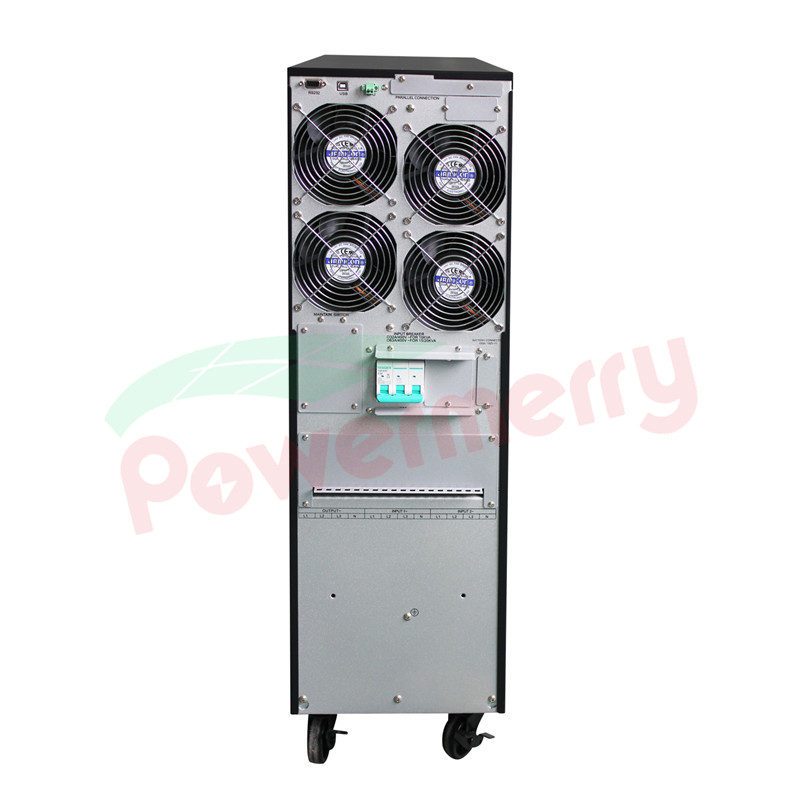

3-Phase HF Online UPS
3-Phase HF Online UPS
3-Phase HF Online UPS
3-Phase HF Online UPS
3-Phase HF Online UPS
3-Phase HF Online UPS
3-Phase HF Online UPS
3-Phase HF Online UPS
3-Phase HF Online UPS
3-Phase HF Online UPS
3-Phase HF Online UPS
3C3 15KS LCD

Product Features

True Realization on Online Double Conversion
Through High Performance Machine run by DSP Technology
Output Power Factor up to 0.8
Battery can adjust between 16~20 Blocks
Charging Current can be adjusted from 0.5~6A by using
Single Phase Grid Power Input Range 110~30oVAC
Emergency Power Off (EPO)
ECO Mode have saving Energy effect
3 Steps Extendable Charging Design,it can ensure the long use of the battery
3 phase input include power factor correction function
N+X Parallel Redundancy
Widely used by Industry in Finance, Telecommunication, Government Sector, Transportation, Manufacturing, Education etc
Service Tel:

0755-27198839

ZX alibaba store ZX alibaba store

Powermerry alibaba store Powermerry alibaba store
Product Details
Descriptions

True Realization on Online Double Conversion
Through High Performance Machine run by DSP Technology
Output Power Factor up to 0.8
Battery can adjust between 16~20 Blocks
Charging Current can be adjusted from 0.5~6A by using
Single Phase Grid Power Input Range 110~30oVAC
Emergency Power Off (EPO)
ECO Mode have saving Energy effect
3 Steps Extendable Charging Design,it can ensure the long use of the battery
3 phase input include power factor correction function
N+X Parallel Redundancy
Widely used by Industry in Finance, Telecommunication, Government Sector, Transportation, Manufacturing, Education etc
Specifications

Model3C3 10KL3C315KL3C320KL3C330KL
Phase3 phase in and out
Capacity10KVA/8KW15KVA/12KW20KVA/16KW30KVA/24KW
INPUT
Input voltage3x 400 VAC (3Ph+N)
Voltage range190-520 VAC (3-phase) at 50% load;305-478 VAC (3-phase) at 100% load
Frequency range46~54 Hz or 56~64Hz
Power factor≥0.99 @ 100% Load
OUTPUT
Output voltage3 Phase 380 VAC (3Ph+N)
Voltage range (battery model)±1%
Frequency range (synchronized rangge)46~54Hz or 56~64Hz
Frequency range (battery model)50 Hz ±0.1 Hz or 60 Hz ±0.1 Hz
Current crest ratio3:1 (MAX)
THD≤2% THD (Linear load);5% THD (non-linear load)
Transfer timeAC－DC0
By passo
wave (battery model)Pure sine wave
Efficiency
AC model89%89%89%
Battery model86%88%87%
Battery
long run machinebattery model20 Pcs (16-20 optional)
quantity
max charger current4A
charger voltage273VDC±1%
Indicators

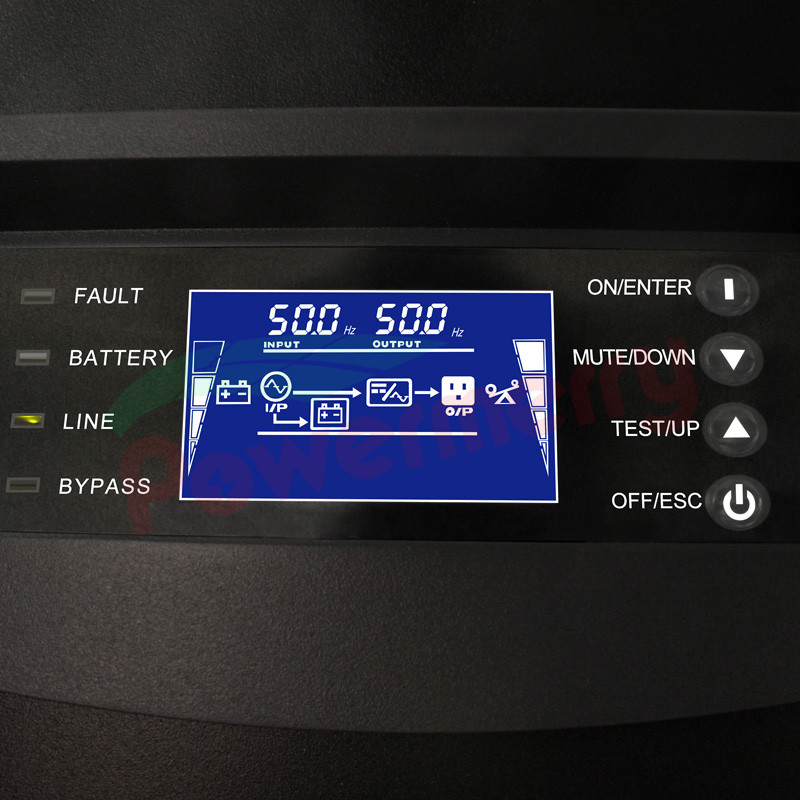

LCD or LEDLoad power, battery capacity, AC model, by pass model. fault
Alarm
Battery modelSounding every 4 second
less than mini voltageSounding every 1 second
overloadSounding every 0.5 second
Faultcontinuously sounding
Physical
Net Weight (KG)33.537.863
Gross Weight (KG)3741.473
Unit Dimension (L x W x H) mm575x250x550mm815×250×760 (without wheel）
815×250×826 (with wheel）
Carton with pallet (L x W x H) mm690x370x720mm930×390×1070mm
Environment
Humidity0-95 % RH @ 0- 40°C (non-condensing)
NoiseLess than 60dB @ 1 MeterLess than 65dB @1 Meter
Control management
RS-232/USBSupport Windows 2000/2003/XP/Vista/2008,Windows7 /8, Linux, Unix, and MAC
Optional SNMPPower management from SNMP manager and web
