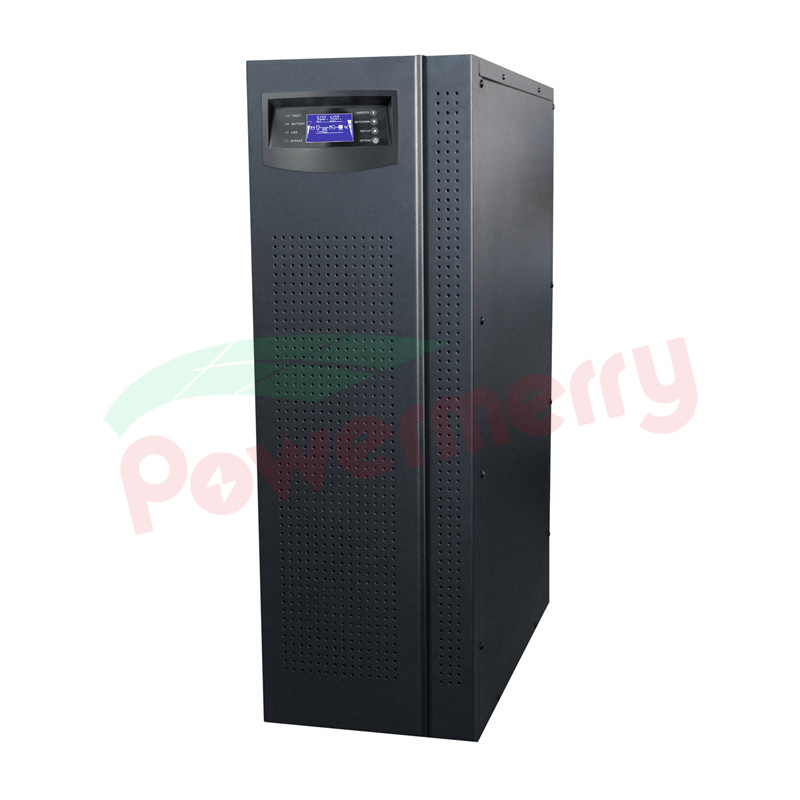

3-Phase HF Online UPS
3-Phase HF Online UPS
3-Phase HF Online UPS
3-Phase HF Online UPS
3-Phase HF Online UPS
3-Phase HF Online UPS
3-Phase HF Online UPS
3-Phase HF Online UPS
3-Phase HF Online UPS
3-Phase HF Online UPS
3-Phase HF Online UPS
3-Phase HF Online UPS
3-Phase HF Online UPS
3C3 30KS LCD

Product Features

True Realization on Online Double Conversion
Through High Performance Machine run by DSP Technology
Output Power Factor up to 0.8
Battery can adjust between 16~20 Blocks
Charging Current can be adjusted from 0.5~6A by using
Single Phase Grid Power Input Range 110~30oVAC
Emergency Power Off (EPO)
ECO Mode have saving Energy effect
3 Steps Extendable Charging Design,it can ensure the long use of the battery
3 phase input include power factor correction function
N+X Parallel Redundancy
Widely used by Industry in Finance, Telecommunication, Government Sector, Transportation, Manufacturing, Education etc
Service Tel:

0755-27198839

ZX alibaba store ZX alibaba store

Powermerry alibaba store Powermerry alibaba store
Product Details
Descriptions

True Realization on Online Double Conversion
Through High Performance Machine run by DSP Technology
Output Power Factor up to 0.8
Battery can adjust between 16~20 Blocks
Charging Current can be adjusted from 0.5~6A by using
Single Phase Grid Power Input Range 110~30oVAC
Emergency Power Off (EPO)
ECO Mode have saving Energy effect
3 Steps Extendable Charging Design,it can ensure the long use of the battery
3 phase input include power factor correction function
N+X Parallel Redundancy
Widely used by Industry in Finance, Telecommunication, Government Sector, Transportation, Manufacturing, Education etc
Specifications

Model 3C3 10KL 3C315KL 3C320KL 3C330KL
Phase 3 phase in and out
Capacity 10KVA/8KW 15KVA/12KW 20KVA/16KW 30KVA/24KW
INPUT
Input voltage 3x 400 VAC (3Ph+N)
Voltage range 190-520 VAC (3-phase) at 50% load;305-478 VAC (3-phase) at 100% load
Frequency range 46~54 Hz or 56~64Hz
Power factor ≥0.99 @ 100% Load
OUTPUT
Output voltage 3 Phase 380 VAC (3Ph+N)
Voltage range (battery model) ±1%
Frequency range (synchronized rangge) 46~54Hz or 56~64Hz
Frequency range (battery model) 50 Hz ±0.1 Hz or 60 Hz ±0.1 Hz
Current crest ratio 3:1 (MAX)
THD ≤2% THD (Linear load);5% THD (non-linear load)
Transfer time AC－DC 0
By pass o
wave (battery model) Pure sine wave
Efficiency
AC model 89% 89% 89%
Battery model 86% 88% 87%
Battery
long run machine battery model 20 Pcs (16-20 optional)
quantity
max charger current 4A
charger voltage 273VDC±1%
Indicators

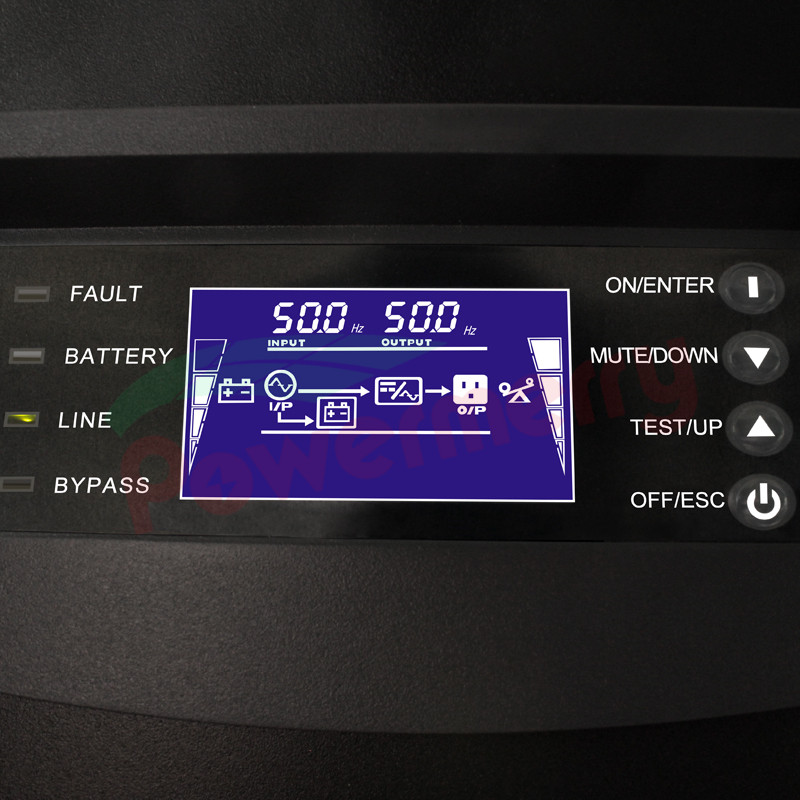

LCD or LED Load power, battery capacity, AC model, by pass model. fault
Alarm
Battery model Sounding every 4 second
less than mini voltage Sounding every 1 second
overload Sounding every 0.5 second
Fault continuously sounding
Physical
Net Weight (KG) 33.5 37.8 63
Gross Weight (KG) 37 41.4 73
Unit Dimension (L x W x H) mm 575x250x550mm 815×250×760 (without wheel）
815×250×826 (with wheel）
Carton with pallet (L x W x H) mm 690x370x720mm 930×390×1070mm
Environment
Humidity 0-95 % RH @ 0- 40°C (non-condensing)
Noise Less than 60dB @ 1 Meter Less than 65dB @1 Meter
Control management
RS-232/USB Support Windows 2000/2003/XP/Vista/2008,Windows7 /8, Linux, Unix, and MAC
Optional SNMP Power management from SNMP manager and web
